Products by Type: Pumps

Calpeda Product Range

Calpeda Product Range

Calpeda of Italy have been established 40 years, and are proud of their International distribution network and product quality record. Their product range is encompases a broad domestic and light industrial range. If you require any further information on any product within their range contact Industrial Pumping.



Document download
Crusader Flexibore 200

Crusader Flexibore 200

Flexible Riser Hose System has been specifically designed to replace rigid riser pipes such as steel which is subject to rust and encrustrations. This internal scaling reduces flow rates and pump efficiency. Other risers such as PVC and polypipe can be brittle or bend. They are also generally heavier and hard to handle. There is no safety cable required when using Flexibore due to its high tensile strength.

Typical Applications

These include mine de-watering, domestic and municipal water supply, test pumping, rural and industrial bore-water retrieval and similar ground water projects.

Easy Installation

Flexibore is attached to the pump with the patented couplings. The pump, with hose and cables attached, is lowered into the bore using either a simple rolling wheel or a crane. With its continuous length, the hose can be installed with less time and labour than rigid systems, this includes poly pipe. The same advantages apply to pump retrieval.



Document download
Davey 4 Inch Submersible

Davey 4 Inch Submersible

Davey 4" borehole pumps and motors are manufactured from quality corrosion resistant materials for long service life. Proven and reliable design for harsh conditions and optimal performance in sandy bores. Close couple to Davey encapsulated or re-windable motors with flow rates to 325lpm.

Document download
Davey 6 Inch Submersible

Davey 6 Inch Submersible

6” stainless steel submersible borehole pump manufactured from corrosion and abrasion resistant stainless steel. Close coupled to Nema standard submersible electric motors. Designed for flow rates to 77m3/hr or 1,280lpm from standard 6” ID bore casing.

Document download
Davey Circulator

Davey Circulator

Davey circulator pumps are ideal for domestic heating applications, secondary hot water services, air conditioning and cooling systems. The advanced multi-speed, shaft-motor can provides a long and reliable operating life. Max operating temperature 120 degrees C, service pressure 1000 kPa, includes unions and gaskets

Document download
Davey Deep Well Jet Pump

Davey Deep Well Jet Pump

A deep well jet pump combines two principles of pumping – that of the centrifugal pump and that of an injector (nozzle and venturi assembly). Davey's range of deep well pumps are fitted with a pressure switch for easy conversion to automatic operation. An automatic demand response valve (ADR) is fitted as standard to protect against loss of prime from over pumping. Used in conjunction with Deep Well injector kits, these pumps are ideal for supplying high pressure water from bores to 42m depth. Pumps can also be used in applications where the pump needs to be horizontally offset from the water supply.

Document download
Davey Deep Well Primejet

Davey Deep Well Primejet

A deep well jet pump combines two principles of pumping – that of the centrifugal pump and that of an injector (nozzle and venturi assembly). Davey's range of deep well pumps are fitted with a pressure switch for easy conversion to automatic operation. An automatic demand response valve (ADR) is fitted as standard to protect against loss of prime from over pumping. Used in conjunction with Deep Well injector kits, these pumps are ideal for supplying high pressure water from bores to 42m depth. Pumps can also be used in applications where the pump needs to be horizontally offset from the water supply.

Document download
Davey Diesel Firefighter

Davey Diesel Firefighter

Davey twin impeller self-priming Firefighter fire pumps close coupled to a Yanmar L48N6 diesel engine for flows up to 200lpm.

Document download
Davey Firefighter Petrol

Davey Firefighter Petrol

Rugged, economical, twin impeller, self-priming pump, driven by either Briggs & Stratton or Honda GX/E engine, fitted with an electric start. Flows up to 600 litres per minute, and maximum heads 120 metres.

Document download
Davey High Flow Submersible

Davey High Flow Submersible

General purpose dewatering sump pumps for water transfer or removal, Able to pump grey water of neutral pH containing up to 10% small soft solids or 1% fine solids. Models from 0.37kW 240 volts to 6” 7.5kW 415 volt pumps.

Document download
Davey High Head Submersible

Davey High Head Submersible

This range of submersible pumps is designed for pumping drinking water with a neutral pH. The lubricating oil used in the pump is vegetable based and non-toxic. Operated by an automatic float attached to the pump, it detects when water is available. The D42A/B and D53A/B are available to purchase as a standalone unit but can be configured as pressure systems for toilet flushing and laundry use.

Document download
Davey HP WPS

Davey HP WPS

Home water pressure systems suitable for single storey homes. Head up to 300kPa, Flow rates from 35 70 lpm. Torrium controllers on the range provide constant flow and even pressures.

Document download
Davey HS WPS

Davey HS WPS

Water pressure system, high pressure for medium to large size single and multi-storey homes. Low power use, quiet and compact four stage pump. Models from 35 to 70 lpm and up to 500 kPa pressure.

Document download
Davey ISO

Davey ISO

ISO end suction pumps have been designed to international standard ISO2858, so that they are dimensionally and operationally interchangeable with other similar pumps conforming to this standard. They feature Caste Iron casing, S/S impellers and replaceable wear rings. They are used in a wide range of applications such as irrigation, municipal and industrial water supplies, commercial pools etc.

Document download
Davey Mukmova

Davey Mukmova

The Mukmova effluent pump is robust in design featuring single stage, open vane, semi vortex, self priming centrifugal driven by either a single or 3-phase TEFC motor. Ideal for pumping effluent water containing soft solids in suspension such as dairy or piggery waste, liquid food transfer and general water transfer. With head pressures up to 24 metres and flows up to 600lpm, the fast self priming Mukmova features a thick section cast iron pump body. A float switch can be added for automatic operation.



Document download
Davey Packaged VM-VSD

Davey Packaged VM-VSD

Davey VM-VSD packaged water pressure system is a single pump system that can provide constant pressure, constant level or constant flow. The inbuilt variable speed drive allows the system to vary according to demand helping to reduce running costs. The system uses a simple text based user interface making set up and system adjustments simple. The programmable controller allows for multiple pump protection features, a fully adaptable menu system and programmable I/O for remote control indication functions. Telemetry options are also available.

Document download
Davey R-VM Packaged WPS

Davey R-VM Packaged WPS

Davey R-VM are a packaged water pressure system using a single speed VM vertical multistage pump, with an adjustable pressure switch, and choice of pressure tank. The systems are supplied with inlet & outlet manifold, pressure gauge, check and isolation valves all mounted on a common base plate. A control box is supplied with Auto, Off and Manual control. A loss-of-prime version is available using a flow switch, which protects the pump in no-flow situations.

Document download
Davey Sewage Grinder

Davey Sewage Grinder

A submersible pump consisting of a solids handling grinder inlet with a high head open impeller to pump waste water containing soft solids in suspension. Applications:

  • Grey & Black Water Pumping
  • Sump Emptying
  • Septic effluent & sewage disposal
  • Pumping of waste water with soft solids in suspension
  • Able to pump soft organic solids, sanitary and rubber products and even some textiles in suspension by shredding into a slurry.
  • Guide rail kits available.
Document download
Davey Shallow Well Jet

Davey Shallow Well Jet

Rugged single stage jet assisted pump fitted with a pressure switch or Torrium controller. Shallow well draw to 7.5 metres with flows up to 228 lpm. Suitable for supplying from dams, creeks, rivers, bores, tanks and for stock watering or sprinkler supply.

Document download
Davey Single Channel Submersible

Davey Single Channel Submersible

Able to pump semi-screened or grey water of neutral pH containing up to 20% small soft solids or 1% fine solids. Some accelerated wear should be expected when pumping hard solids in suspension.

Document download
Davey Submersible Vortex Sump Pump

Davey Submersible Vortex Sump Pump

Semi-vortex open impeller sump pump design that is less susceptible to blockage. Suitable for pumping light slurries with soft solids in suspension - grey water, sump emptying, septic effluent disposal and water transfer.



Document download
Davey VM

Davey VM

Davey Vertical Multistage pumps have a range available to provide flow rates up to 80m3/hr and pressure up to 230m. The VM series are suitable for a very wide range industrial applications. Features:

  • All hydraulic parts are made from 304SS with shafts being made from 316SD to provide higher corrosion and abrasion resistance for a longer pump life.
  • Threaded 304SS companion flanges with gaskets, nuts, bolts and washers are included with every pump for easier installation.
  • Hard-faced mechanical seals provide a longer life. VM16 models and larger have cartridge seals for faster changeover.
  • MEPS compliant - all 3 phase motors are Minimum Energy Performance Standards compliant for greater energy efficiency and lower running costs.
  • Rotating Elements - Replacing all moving hydraulic parts as a single unit ensures minimal maintenance downtime.
  • Teflon Neck Rings - Provide less vibration, noise and sensitivity to thermal expansion to help maintain high pump efficiency.
  • Raised Bottom Bearings - Raising this bearing reduces the risk of damage from sediments and increases the life of the bearing.
  • High Temperatures - Pumps can operate in temperatures from -15 to 70oC
  • High IP Rating - VM motors are IP55 and are suitable for outdoor applications
  • Large Single Phase Motors - Available up to 4.0kW



Document download
Davey XJ Water Pressure System

Davey XJ Water Pressure System

Davey Dynajet XJ pumps are an ideal home pressure system to use when drawing water from a level that is below the pump such as in a buried or partially buried tank. There are 3 models available to suit medium to large homes. Economical, compact 50, 70 and 90lpm single stage jet assisted centrifugal pumps.

  • Ideal for average homes with modern appliances to large double story homes
  • Domestic water supply
  • Pressure boosting
  • Automatic water transfer
  • Pumping from shallow wells or sand spears
  • Overhead or high tank filling
  • Pressure boosting
  • Water transfer



Document download
Davey XP Water Pressure System

Davey XP Water Pressure System

Davey XP jet pressure system with Torrium controller; provides constant water pressure in small homes when sourcing water from an underground or partially buried tank. Also available with a pressure switch and Super Cell pressure tank.

Document download
Ebara 2CDX

Ebara 2CDX

The 2CDX series are a twin impeller pump made almost entirely in 304 stainless steel. These pumps are suitable for a variety of applications where higher pressures are required.



Document download
Ebara 3LS2

Ebara 3LS2

The 3LS series are a 2-Pole speed close coupled stainless steel pump, featuring one piece, plasma stamped volute casing. The smooth stamped stainless steel surfaces result in superior quality and high efficiency.

The back pull-out construction permits the disassembly and overhaul of the impeller, shaft and bearings, without removal of the suction or discharge piping, or pump casing. The centre line discharge and foot support under the casing ensure maximum resistance to misalignment and distortion from pipe loads.

Document download
Ebara 3LS4

Ebara 3LS4

The 3LS4 series are a 4-Pole speed close coupled stainless steel pump, featuring one piece, plasma stamped volute casing. The smooth stamped stainless steel surfaces result in superior quality and high efficiency.

The back pull-out construction permits the disassembly and overhaul of the impeller, shaft and bearings, without removal of the suction or discharge piping, or pump casing. The centre line discharge and foot support under the casing ensure maximum resistance to misalignment and distortion from pipe loads.

Document download
Ebara 3LS4-65/80

Ebara 3LS4-65/80

The 3LS(4)-65/80 series are are full caste 316 Stainless Steel pump ends.  They have as standard Silicon vs Silicon Viton mechanical seals. The back pull-out construction permits the disassembly and overhaul of the impeller, shaft and bearings, without removal of the suction or discharge piping, or pump casing. The centre line discharge and foot support under the casing ensure maximum resistance to misalignment and distortion from pipe loads.



Document download
Ebara Best One Sump Pump

Ebara Best One Sump Pump

Sump pump with Vortex impeller, 20mm solids handling capacity, full 304 stainless steel construction, fitted with mechanical seal and auto float switch and 5 metres of cable

Document download
Ebara CDX

Ebara CDX

The CDX series are a single impeller pump, made almost entirely in 304 stainless steel. These pumps also feature the one piece volute manufactured using Ebara's unique plasma stamping process

Document download
Ebara DML

Ebara DML

Submersible sewage pumps with single channel non-clog impellers and double row lower bearings for reliability. Suitable for raw sewage, waste water and storm water. 2.2 to 22 kW (3ph) Manual only



Document download
Ebara DMV

Ebara DMV

Submersible pumps with non-clog vortex impellers and double row lower bearings for reliability. Suitable for waste water containing soft solids, raw sewage, and storm water

Document download
Ebara DVS

Ebara DVS

A robust cast iron pump, with solids handling semi-vortex impeller, ideal for Waste water applications with soft or fibrous material such as Wash down sumps or Septic effluent. Motor sizes from 0.4 to 0.75 kW (1ph) Manual or Auto, or 0.75 to 3.7 kW (3ph) Manual or Auto.



Document download
Ebara DW VOX

Ebara DW VOX

The submersible sump pumps are manufactured in 304 stainless steel, with a double mechanical seal. They have a vortex impeller, suitable for dirty water applications with some solids and/or fibres. They can be used are used for pumping of drainage and industrial waste water, 0.55 to 1.1 kW (1ph) Manual or Auto and 0.55 to 1.5 kW (3ph) Manual only

Document download
Ebara DWO

Ebara DWO

Open Impeller Pumps For pumping water containing suspended soft solids. Use in various industrial processes 1.1 to 1.5 kW (1ph) or 1.1 to 3.0 kW (3ph)



Document download
Ebara EVMG

Ebara EVMG

The Ebara EVMG vertical multistage pumps feature technically advanced designs, and use IEC standard motors, and inbuilt thrust bearing for models over 1.5 Kw. Stainless steel components are of high quality, and the unique bulge forming process produces rugged construction with increased wall thickness and assures component integrity. Ebara's robust construction extends to critical internal components such as the impellers and intermediate casings. With other features including self-aligning liner rings, square edged spline shaft, and tungsten carbide lower bearings, the result is a product of exceptional quality and reliability.



Document download
Franklin 4 Inch Motors

Franklin 4 Inch Motors

4-inch Encapsulated motors are built for dependable operation in 4-inch diameter or larger water wells. This contractor friendly premium motor protection system protects the motor against overload, underload, overheating and rapid cycling.

Technical Specifications:

  • 2 Wire motors, 1 phase: 0.37 kW to 1.1 kW
  • 3 Wire motors, 1 phase: 0.75 kW to 2.2 kW
  • 3 Wire PSC motors, 1 phase: 0.25 kWto 2.2 kW
  • 3 Phase motors: 0.37 kw to 3.7 kW
  • 4" NEMA flange
  • Rotation 1 phase: CCW facing shaft end
  • Rotation 3 phase: either CW or CCW (wiring change)
  • 2 Wire motors are Plug and Pump, no control box/starter required
  • Matching FE Control Box/Starters for all 3 Wire 1 phase motors
  • Matching FE Control Box/Starters (SubStart SC) for all 3 Wire PSC 1 phase motors
  • Motor warranty void if Franklin Electric 1 phase control box/starters not used
Document download
Franklin 6 Inch Motors

Franklin 6 Inch Motors

6-Inch Encapsulated SAND FIGHTER™ submersible motors are built for superior dependability in sandy well applications. This innovative sealing system utilizes an optimized mechanical seal with silicon-carbide faces in combination with numerous specially developed manufacturing processes. Technical Specifications:

  • 4 to 45kW
  • 6" NEMA flange
  • Protection: IP68
  • Starts per hour: max. 20
  • Installation: vertical/horizontal
  • Standard voltage: 380-415 V/50 Hz
Document download

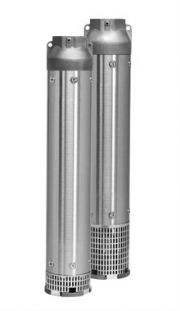

Franklin 6 Inch SR

Franklin 6 Inch SR

FPS 6-Inch SR Series radial water pumps were designed specifically for municipal and industrial applications where high grade stainless steel is required. These pumps contain stainless steel impellers, a thick solid stainless steel shell to maintain alignment and heavy investment cast suction and discharge brackets. Designed to operate efficiently with Franklin Electric submersible motors, the FPS SR Series all stainless steel pump is equipped to handle the most demanding conditions.

  • 14, 19, 30, 46 and 65 m³/h flow ratings
  • Rugged stainless shell
  • Maintains permanent alignment of all components for increased longevity, especially in horizontal applications
  • Simple cable guard removal and installation without disturbing hydraulic stack
  • Investment-cast stainless steel suction and discharge bracket
  • Built-in check valve
  • Stainless steel impellers in radial and mixed flow designs
Document download
Franklin 8 Inch FS

Franklin 8 Inch FS

FS Series 8-Inch pumps have been engineered in all AISI 316 stainless steel for efficient and reliable pumping of liquids in marine, residential, municipal, industrial and agricultural applications.

  • 100 and 130 m³/h flow ratings
  • Stainless Steel AISI 316 discharge and suction bracket
  • Stainless Steel AISI 316 bowls
  • 8-Inch sizes
  • Stainless steel impellers and diffusers
  • Impellers locked onto shaft with keys
  • Rubber bearings
  • Integrated Non Return valve on all models
  • Flanged and BSPP discharges
Document download
Franklin Control Boxes

Franklin Control Boxes

Franklin Electric submersible control boxes are designed and optimized specifically for Franklin submersible motors. Controls are an integral part of a submersible motor power system.Franklin controls provide long-lasting, reliable operation for best system performance.

Document download
Franklin FPS 4400

Franklin FPS 4400

4400 High Capacity 4-Inch Submersible pump range are engineered for commercial, irrigation and residential use. Design advancements reduce efficiency losses caused by internal pump leakage and abrasives (sand).

  • 100, 150, 200 and 270 litres per min flow ratings
  • Stainless Steel discharge head and motor bracket.
  • Rated against sand locking in abrasive well conditions
  • High flow impellers and stages are glass-filled Noryl™ for maximum efficiency.
  • Ceramic shaft sleeve and rubber discharge bearing eliminates sand wear.
  • Intermediate bearing for increased shaft stability.
  • Floating eye and hub seals improve performance and efficiency.
  • Stainless steel hex pump shaft, shell and shaft coupling.
  • High capacity upthrust assembly for protection during start-up and operation
  • 2" BSPP discharge threads.
  • Supplied with external check valve.
Document download
Franklin Product Range

Franklin Product Range

Open the PDF to view the full Franklin Electric pump range.

Document download
Franklin Solar

Franklin Solar

The Franklin SubDrive SolarPAK is the System Solution to your solar pumping requirements. No other system delivers the features, benefits, and reliability of SubDrive SolarPAK in just one package. The SubDrive Solar pumping system is fully compatible with the remote monitoring and access parameters of the Observant system to allow the site owners/operators full access to their Franklin Electric solar water pumping system.

  • High flow system for faster tank fill and significant water output
  • Proven motor and pump technology and reliability
  • Robust IP55, NEMA 3 drive enclosure minimizes impact of wildlife, insects, dust, and weather
  • DC and AC power inputs with auto-switching to generator back-up
  • Seven segment controller display shows real-time input watts and system status
  • Remote telemetry capability through a RS-485 continuous data port
  • MPPT – Max Power Point Tracking for maximizing efficiency of input power
  • Soft start feature prevents water hammer and increases system life
  • Simple installation and no required maintenance
  • Built-in diagnostics and protection
Document download
Grundfos CM Booster

Grundfos CM Booster

The Grundfos CM Booster Self-Priming is a compact booster pump designed for domestic and light industrial use. The booster unit consists of a robust multistage centrifugal pump and a generator friendly PM2 Pressure Manager. The Pressure Manager allows the pump to start and stop automatically according to demand and protects the pump from dry running. The CM Booster is Self-Priming so can be used with above or below groundwater sources.

Applications:

  • Mains water pressure boosting
  • Rainwater supply from above ground water tanks
  • Rainwater supply from below ground water tanks
  • Rainwater supply from dams or rivers
Document download
Grundfos CM(E)

Grundfos CM(E)

The horizontal multistage pump CM is basically composed of a series of interchangeable modules, all of which have been designed to work together seamlessly, no matter what the application.The pumps are of the close-coupled type. The difference between the CM and the CME pump ranges is the motor. CM pumps are fitted with mains-operated motors, whereas the motors for CME pumps have an integrated frequency converter. The CM and CME pumps are available in cast iron or stainless steel. The CM or CME pump is primarily used as a built-in pump in OEM solutions and domestic boosters. It is compact, noiseless, reliable and flexible.  It can be installed in systems or used as a stand-alone pump.

Document download
Grundfos CR

Grundfos CR

Grundfos CR series are vertical, multistage centrifugal pumps with suction and discharge ports on the same level. All wetted parts are in stainless steel , but the pump head and base can be cast iron, (CR version), 304 grade Stainless steel, (CRI version), or 316 Stainless steel, (CRN version). All CR pumps can be supplied with variable speed motors, and then they are an “E” version, such as CRIE. Different porting arrangements are available.



Document download
Grundfos Dosing

Grundfos Dosing

Grundfos offers a wide range of dosing pumps representing state-of-the-art technology. Grundfos Digital Dosing solutions (SMART Digital, DME, DDI) set new standards in liquid chemical handling and accuracy. The operator can easily install and set up the pump to discharge exactly the quantity of dosing liquid required for the process in a unique drive- and flow-control management concept. The setting of the pump is displayed in ml/h, or l/h and the operation mode is easily identified by means of icons. The dosing pumps are designed for handling chemicals within the following applications:

  • Drinking water treatment
  • Wastewater treatment
  • Cooling water treatment
  • Washing systems
  • Process water treatment
  • Chemical industry.

Features and benefits

  • Precise and easy setting
  • Unique technology
  • Full pulse control
  • Pulse batch control
  • Internal timer batch controlAnalog 0/4-20 mA control
  • Level control
  • Fieldbus communication module.
Document download
Grundfos Hydro MPC

Grundfos Hydro MPC

The Grundfos Hydro MPC booster systems are made to the very highest standards. Thanks to the CU 351 controller, they handle even the most difficult boosting jobs with ease and accuracy. All components have been combined with focus on quality and efficiency. The Grundfos Hydro MPC booster systems are designed to last: sturdy, compact units with easy access to all service parts. Grundfos Hydro MPC booster systems can be used wherever additional pressure is required. Each booster model has been designed to meet specific customer demands for capacity and control.

The intelligent cascade control ensures that the optimum number of pumps required to meet the demand runs at any time. Together with the CR with IE3 motors, this makes the Hydro MPC the most energy-efficient solution for maintaining a constant pressure during changing flow demands.

Applications

  • Offices
  • schools
  • hotels
  • blocks of flats
  • irrigation systems
  • industry
  • municipal supply systems.

Features and benefits

  • Reliable
  • highly efficient
  • service-friendly
  • space-saving
  • easy to commission
  • low-flow detection
  • application-optimised software
  • BUS and Ethernet communication option
  • large, clear displaymenus in plain text.
Document download
Grundfos Multi B

Grundfos Multi B

The Grundfos Hydro Multi-B is a compact, reliable, and energy efficient constant pressure booster system ideal for as a water pressure in apartments, large homes, and multi-story buildings. The Hydro Multi-B is a unique combination of variable speed multistage pumps and simple user interface. The CME pump combined with an MLE motor provides the variable speed functionality with energy efficiency that exceeds NEMA premium efficiency levels.


Applications:

  • Domestic water pressure boosting
  • Multistory buildings, such as apartment buildings, small hospitals, and hotels
  • Large homes
  • Rural areas requiring pressure boosting
  • Anywhere redundant pumping is required

Benefits:

  • Simple to use via the user friendly controller
  • Energy efficient motor technology
  • Compact and easy to retrofit
  • Quiet operation
  • Single source responsibility
  • Protects the overall system from costly breakdowns
  • Connects into most BMS systems
Document download
Grundfos NB

Grundfos NB

Grundfos NB/NBG pumps are all non-self-priming, single-stage, centrifugal volute pumps with axial end suction port, radial discharge port and horizontal shaft. The NB/NBG range consists of close-coupled pumps ISO dimensions, fixed or variable speed.

Document download
Grundfos Scala 2

Grundfos Scala 2

GRUNDFOS SCALA2 is a robust, composite, variable speed pump that adjusts performance according to water demand, providing constant pressure to all taps. The fully integrated pump includes a motor, tank, sensor, drive and non-return valve in one compact unit that is quick and easy to install. SCALA2 is self-priming, allowing for use from both above and below ground water sources and the water-cooled motor ensures quiet operation.

Applications:

  • Household water supply
  • Pressure boosting from above ground rainwater or holding tanks
  • Pressure boosting from below ground water sources - eg. below ground tank or dam
  • Mains boosting

Features & Benefits

Variable Speed: The pump adjusts performance according to water demand, providing constant pressure to all taps regardless of variations in demand or inlet pressure.

Special Motor: The water cooled 240 volt variable speed motor is quiet and efficient. It has a wide 150-400 VAC tolerance, which is vital in areas with a poor power supply.

Self-Priming: Ideal for pressurising water from above or below ground water sources with a suction lift of up to 8 metres and self-priming up to 4 metres.

Energy Efficient: The pump features a permanent magnet motor to help reduce power consumption while the frequency controller matches the power consumption with the required water output, also helping to conserve energy and reduce energy bills.

Simple Selection: One model to suit most domestic applications makes selection easy.

User Friendly: The easy-to-use control panel features LED indicators displaying power status, pressure setting and alarm indicator lights.

Protective Functions: Inbuilt dry-run protection, anti-cycling alarm, auto-reset and maximum continuous operation time (30 mins).

Easy Installation: Quick and easy installation in just three steps; connect the pipes, prime the pump and plug into the power outlet.



Integrated NRV: No additional non-return valve required.

Document download
Grundfos SE

Grundfos SE

The Grundfos SEV and SE1 pumps are designed for handling wastewater, process water and unscreened raw sewage. These technologically very advanced series of pumps are available with efficient single-channel or Super Vortex impellers allowing for free passage of solids up to 100 mm in size. This greatly reduces the risk of clogging, and ensures maximum up-time and low operating costs. The SEV and SE1 pumps can be permanently installed by means of an auto-coupling system or with a fixed pipe connection, submerged or dry, without separate motor cooling arrangements. The pumps are also suitable for free-standing installation, or as portable utility pumps.



Document download
Grundfos SEG

Grundfos SEG

Grundfos SEG pumps are designed for pumping:

  • Sewage
  • Wastewater
  • Wastewater with high content of fibrous material

Grundfos SEG series are a submersible pump with a horizontal discharge port. They are specifically designed for the pressurised pumping of sewage and wastewater containing destructible solids. The pumps are equipped with a cutter system which cuts destructible solids into small pieces so that they can be led away through pipes of a relatively small diameter. The compact design makes these pumps suitable for both free-standing and auto-coupling guide rail installation.

SEG Auto Adapt series have inbuilt level switches and communication between pumps. This means they can be installed without the need for complex switchboards and floats. No level switches or motor protection required.

Features and benefits

  • Integrated cutting system (APG)
  • Dry or submerged installation
  • Installation on auto coupling
  • Sensors in windings
Document download
Grundfos Solar SQFlex

Grundfos Solar SQFlex

SOLAR SQFlex is a sustainable, reliable and cost-efficient water supply solution for remote locations. The complete SQFlex pump range consists of 10 different pump sizes: 4 helical rotor pumps for medium to high heads and low to medium flows, and 6 centrifugal pumps for shallow heads and high flows. It is available in AISI 316 stainless steel for slightly aggressive water. The pump is fitted with a high efficiency motor for DC or AC voltage. This makes pump sizing and selection extremely easy.

Being designed for continuous as well as intermittent operation, the SQFlex system is especially suitable for water supply applications in remote locations, such as:

  • Villages, schools, hospitals.
  • Farms – watering of cattle
  • Watering applications
  • Conservation areas
  • Floating pump installations for pumping of water from ponds and lakes.

Features and benefits

  • Dry-running protection with automatic restart prevents pump damage to the pump
  • Stainless steel pump casing for long service life
  • Carbon Ceramic bearings ensure high reliability
  • MPPT ensures even and high system efficiency regardless of power source
  • Two way communication between the control unit and the pump
Document download
Grundfos Sololift

Grundfos Sololift

SOLOLIFT is a unique range of compact lifting stations enabling a drain of any domestic sanitary appliance, independent from the gravity drain system. The units collect, macerate and pump the wastewater through a smaller diameter pressure pipe. The range consists of 5 compact lifting station variants for disposal of domestic wastewater. WC-1, WC-3 and CWC-3, are designed to take wastewater from a toilet and further sanitary appliances. The numbers indicates how many additional inlet connections are possible. The units come ready to use with a plug and operate full automatic when water enters the tank.



Document download
Grundfos SP

Grundfos SP

Grundfos SP submersible pumps are renowned for their high efficiency and reliability throughout the range. Made entirely of corrosion-resistant stainless steel, 100 % inside and outside, Grundfos SP pumps represent state-of-the-art hydraulic design.  SP pumps provide low long-term costs and high operating reliability regardless of the application. The Grundfos SP range offers high efficiency, high resistance to sand and other abrasives, and motor burnout protection. A complete monitoring and control system in the MP204 is available for constant optimisation of the pumping system.

Document download
Grundfos SQ-SQE

Grundfos SQ-SQE

The Grundfos SQ series are a compact 3" multistage submersible borehole pump, and with their built-in electronics, SQ pumps are very easy to install and operate. The SQE version can be connected to a Grundfos CU 301 control box,enabling it to be a variable speed constant pressure system.All SQ pumps have a “Soft Starting” motor, and this low amperage draw on start, makes these ideal pumps for use with generators. The SQ/SQE pumps are suitable for both continuous and intermittent operation for a variety of applications, such as Ground water supply, Liquid transfer in tanks, Pressure boosting or sampling. They have built in protection control including:

  • Dry-running protection
  • Permanent magnet motor with high efficiency
  • Wear resistance from floating impellers
  • Protection against upthrust
  • Over- and under-voltage protection
  • Overload protection
  • Over-temperature protection.



Document download
Grundfos TP

Grundfos TP

Grundfos TP series are single-stage, in-line, close coupled centrifugal pumps, in Cast Iron, Bronze or S/S construction. Ideal in applications such as Heating, Air-conditioning or Pressure boosting.



Document download
Grundfos UNILIFT AP

Grundfos UNILIFT AP

Grundfos Unilift AP series of stainless steel submersible drainage, effluent and domestic sewage pumps. Medium duty, free standing pumps, either manual and auto operation.



Document download
Grundfos UPS

Grundfos UPS

Grundfos UPS are a 3-speed control circulator pump, for circulation of liquids in heating and air-conditioning systems. Pumps with bronze or stainless steel housings options they are suitable for use in hot-water service systems. The pumps can be used in both open and closed systems. UPS pumps are of the canned-rotor type, i.e. pump and motor form an integral unit without a shaft.



Document download
Iwaki ES

Iwaki ES

The Iwaki ES series pumps are cost-effective electronically controlled solenoid driven metering pumps designed for basic dosing requirements. They are suited to applciations requiring manually controlled highly accurate chemical dosing and are ideal for OEM applications.

Materials

  • Wetted materials including PVC, ceramic, PTFE, 316 s/steel, Hastelloy C and PVdF are available to handle nearly all chemical solutions.
  • Tubing connections are used for fast and easy installation.

Control Modes: ES Series

  • Manual capacity control via stroke frequency adjustment between 1-360spm.

Capacities:

  • 8 models cover maximum capacities from 2.28 to 24.0 litres/hour
  • Discharge pressures up to 10 bar.
  • Turndown range of over 360:1 is available via manual stroke frequency control.

Accessories:

  • Anti-syphon loading valves, flow detection with alarm output, automatic degassing valves, various tubing connections.
Document download
Iwaki EWN

Iwaki EWN

The Iwaki EWN-series pumps are electronically controlled solenoid driven metering units capable of highly accurate and easily controlled chemical dosing. Manual, semi-automatic or fully automatic control is possible by combining suitable inbuilt control modules. Additional safety accessories are available for extra security when used in the most critical applications.

Materials:

  • Wetted materials including PVC, ceramic, PTFE, 316 s/steel, Hastelloy C, GFRPP and PVdF are available to handle nearly all chemical solutions.
  • Tubing connections are used for fast and easy installation.

Control Modes EWN-R / EWN-Y EH-E Series:

The standard EWN-R model now combines complete functionality for either manual or automatic operation in a single range: Manual capacity control with either auto stop or external pulse, or; Programmable automatic control from either 4-20mA, preset counter or proportional pulse. Pulse divide/multiply functions with alarm output (EH-E only), flow detection and failure alarm, flow readout in either litres/hr or strokes/min.

Capacities:

  • 12 models cover maximum capacities from 0.7 2.28 to 75.0 litres/hour
  • Discharge pressures up to 10 bar.
  • Turndown range of 720:1 up to 9001800:1 (depending on model) is available using a combination of manual stroke length and automatic stroke frequency control.

Additional variants for specific requirements include:

  • EWN-A type; with automatic degassing pump head for gassing chemicals such as sodium hypochlorite.
  • EWN-Y type; includes all the features of the standard EWN-R, plus the capability of self-calibrating, real-time flow readout when used with the EFS flow sensor incorporating feedback control. Simple flow monitoring functions can be achieved using the optional FCM or FCP flow checkers to detect abnormal flow conditions. Alarm and analogue output functions as standard provide additional options for flow verification.
  • The EWN-A auto degassing valve can be combined with the EWN-Y with EFS for a completely self-calibrating, self-degassing solution with automatic fast-prime capability

Accessories

  • Anti-syphon loading valves, flow detection with alarm output, automatic degassing valves, various tubing connections.
Document download
Iwaki LK

Iwaki LK

The Iwaki LK series pumps are motor driven mechanical diaphragm metering pumps designed for accurate and easily controlled chemical dosing. The LK range offers one of the widest capacity ranges available. Robust construction, long service life and compact size are features of this range. Manual stroke length control is standard, with optional electric stroke positioners available. Automatic flow control via 4-20mA or pulse signals is possible.

Materials

  • Wetted materials including PVC, ceramic, PTFE,316 s/steel, Hastelloy C and PVdF are available to handle nearly all industrial chemicals.

Accessories

  • Relief valves, loading valves, pulsation dampeners, calibration cylinders, servo stroke actuators and automatic controllers are available.

Capacities

  • 19 models covering maximum capacities from 1.2 to 3240 litres/hour.
  • Discharge pressures up to 15 bar.
  • Manual or electric stroke length control range of 5:1 is available.
  • Automatic speed control range up to 120:1 is possible with the MFC controller.

Standard IEC B5 flanged industrial motors are used without the need for special adaptors, allowing easy fitment of Ex’d’ or other hazardous rated motors when required.

MFC Controller for Iwaki Motorised Metering Pumps

  • Allows automatic control of pump stroke rate from 0 to 120 spm.
  • Combination of stroke length adjustment with stroke rate enables capacity control over a 1:480 range.
  • Can be locally mounted with pump or remotely in MCR.
  • Analogue 4~20mA input and pulse input with divide/multiply operation.
  • Capacity display in litres/hr or SPM is user-selectable.
  • Large LCD display and touch keys offer user-friendly operation.
  • Key lock, fast priming, no flow-detection & external level sensor control are incorporated to assist chemical dosing management.
Document download
Iwaki MD

Iwaki MD

The Iwaki MD series are smallest capacity magnetic drive centrifugal pumps in the Iwaki range. Quality however, is not compromised and the reliability of this series in O.E. applications is legendary.

Materials

  • Glass filled polypropylene wetted parts with ceramic shaft & filled PTFE bearings are standard. For stronger chemicals, selected models are available with optional virgin PVdF or carbon fibre reinforced ETFE fluoropolymer and SiC ceramic parts for resistance to nearly all industrial chemicals.

Connections

  • All models are available with hose type connections as standard
  • Optional threaded connections are available
  • PP self priming chamber kits are available for models MD30R / 40R / 70R

Capacities

  • 22 models cover transfer capacities up to 135 litres/minute
  • Maximum heads are up to 11.7m

Other Notes

  • Iwaki purpose-built motors are used on all single phase models. Larger models are available with either factory fitted or optional IP55 rated three phase industrial motors
Document download
Iwaki MDE

Iwaki MDE

The Iwaki MDE series are heavy duty industrial magnetic drive centrifugal pumps covering larger industrial applications. Excellent chemical resistance, robust construction and simple maintenance are features of all these series.

Materials

  • Carbonfibre reinforced ETFE fluoropolymer wetted parts with alumina ceramic or SiC shaft & high density carbon, alumina ceramic or SiC bearings. Virgin PFA is available for higher liquid temperatures & a wider range of chemical resistance.

Connections

  • All models have ANSI flanged connections as standard, with ISO flanges optional.

Capacities

  • MDE has 3 models covering capacities from 6m3/hr up to 240m3/hr
  • Maximum heads to 55m.

Motors

  • All models are fitted with standard IP66 rated outdoor industrial motors
Document download
Iwaki MX

Iwaki MX

The Iwaki MX & MX-F series are medium capacity industrial magnetic drive centrifugal pumps available in two material configurations to cover a wide range of industrial chemicals.

Materials

  • Glass filled polypropylene wetted parts with ceramic shaft & high density carbon bearings. For stronger chemicals, carbonfibre reinforced ETFE fluoropolymer and alumina ceramic parts are used for resistance to nearly all industrial chemicals

Resistance to abnormal or improper operation

  • All models have Iwaki’s patented Non-Contact System & Self Radiation bearing structure for greatly increased tolerance to improper operation such as short term dry running and cavitation.

Connections

  • For stronger chemicals, carbonfibre reinforced ETFE fluoropolymer, alumina ceramic & SiC parts are used for resistance to nearly all industrial chemicals. All Australian versions have flanged connections as standard, which can be readily removed should threaded connections be preferred.

Capacities

  • Five models cover transfer capacities up to 500 litres/minute.
  • Maximum heads are up to 28m.

Motors

  • All models are fitted with standard IP66 rated outdoor industrial motors.
Document download
Iwaki MXM

Iwaki MXM

The Iwaki MXM, MDM & MDE series are heavy duty industrial magnetic drive centrifugal pumps covering the majority of industrial applications. Excellent chemical resistance, robust construction and simple maintenance are features of all these series.

Materials

  • Carbonfibre reinforced ETFE fluoropolymer wetted parts with alumina ceramic or SiC shaft & high density carbon, alumina ceramic or SiC bearings.

Resistance to abnormal or improper operation

  • All models have Iwaki’s patented Non-Contact System & Self Radiation bearing structure for greatly increased tolerance to improper operation such as short term dry running and cavitation.

Connections

  • All models have ANSI flanged connections as standard, with ISO flanges optional.
  • 316 stainless baseplates are standard fitment to simplify installation.

Capacities

  • 3 models with a wide range of available impellers covering capacities up to 36m3/hr
  • Maximum heads to 30m.

Motors and optional drives

  • All models are fitted with standard IP66 rated outdoor industrial motors.
  • MXM pumps are also ideal for portable or mobile applications such as diesel or petrol.
Document download
Iwaki SMX

Iwaki SMX

The Iwaki SMX & SMX-F series are medium capacity industrial self-priming magnetic drive centrifugal pumps available in two material configurations to cover a wide range of industrial chemicals. The SMX series adds versatility to the range by allowing inbuilt self priming capability well suited to underground tanks or suction lifts.

Materials

  • Glass filled polypropylene wetted parts with ceramic shaft & high density carbon bearings. SMX-F, for stronger chemicals, carbonfibre reinforced ETFE fluoropolymer and alumina ceramic parts are used for resistance to nearly all industrial chemicals.

Resistance to abnormal or improper operation

  • All models have Iwaki’s patented Non-Contact System & Self Radiation bearing structure for greatly increased tolerance to improper operation such as short term dry running and cavitation.

Connections

  • All models have flanged connections as standard.

Capacities

  • Five models cover transfer capacities up to 500 litres/minute.
  • Maximum heads are up to 28m.

Motors

  • All models are fitted with standard IP66 rated outdoor industrial motors.

Other

  • Models using carbon bearings have conditional dry run capability
Document download
KSB Amarex

KSB Amarex

KSB Amarex N pump range is a vertical, single-stage submersible motor pump, for wet installation, stationary and transportable design. Amarex N pumps are floodable, single-stage, single-entry close-coupled pump sets which are not self-priming, handling of all types of waste water, especially untreated sewage containing long fibres and solid substances, fluids containing gas/air, as well as raw, activated and digested sludge

Document download
KSB Etanorm

KSB Etanorm

KSB Etanorm pump range is a horizontal, long-coupled, single-stage volute casing pump in back pull-out design, with replaceable shaft sleeves / shaft protecting sleeves and casing wear rings. Used predominantly in building services.



Document download
KSB Movitech

KSB Movitech

KSB Movitech pump range is a multistage, vertical, high-pressure centrifugal pump in ring-section design with suction and discharge nozzles of identical nominal diameters arranged opposite to each other (in-line design), close-coupled.



Document download
Kwikflo KDP

Kwikflo KDP

KDP are a range of mechanical diaphragm pumps. They incorporate a heavy duty gearbox coupled to an eccentric block to actuate the diaphragm, making them appropriate for heavy-duty applications. The pump is belt-driven with pulleys which enable it to use a variety of drive options, including electric motors and petrol and diesel engines for 2” and 3” pumps. With the ability to self-prime, handle solids and run dry, they have a wide range of applications.

Features:

  • Suction lifts to 7.5m
  • Rapid self-priming
  • Will run dry without damage
  • Heavy duty
  • TEFC electric motors fitted as standard
  • Will operate on snore
  • Will handle abrasive liquids
  • Will pass solids up to 80% port size
  • Compact construction

Applications:

  • Dewatering excavation
  • Raw sewage
  • Pool maintenance and construction
  • Waste treatment plants
  • Oil skimming
  • Bore desludging
  • Oil/Water separators
  • Machine sumps
  • Priming large centrifugal pumps
  • Industrial wastes
  • Liquid manure
  • Septic tank cleaning
  • Drum emptying
  • Abattoirs and poultry processing
  • Spillage mop up



Document download
Kwikflo KGC

Kwikflo KGC

KGC gear pumps can be used in a wide variety of applications. These positive displacement low inertia pumps are excellent at pumping fluids at low to medium pressures. These pumps can be used to pump water and a large range of other non-abrasive fluids including oils and molasses. Very useful for pressure boosting, liquid transfer, factory process pumping and lubrication duties

Document download
Lowara C Series

Lowara C Series

Lowara C Series Single Stage Pump, stainless steel threaded port centrifugal pumps, for a wide range of domestic and industrial applications. Single-impeller (CEA) and dual-impeller (CA) models available. "N" version completely made of AISI 316 stainless steel also available.



Document download
Lowara CO Series

Lowara CO Series

Lowara CO Series Open Impeller Pump, threaded port close coupled centrifugal pumps with open impeller. These pumps combine the advantages of an open impeller with those of the AISI 316 stainless steel construction, which is particularly suited for handling moderately aggressive liquids with suspended solids.



Document download
Lowara e-SV

Lowara e-SV

Lowara e-SV Series Vertical Multi Stage Pumps are tough, efficient and built to last. A new hydraulic design and higher efficiency motor, the e-SV™ delivers lower overall life-cycle costs and superior efficiency. Multi-stage vertical pumps with impellers, diffusers and outer sleeve entirely made of 304 stainless steel, and the N versions are entirely made of 316 stainless steel.



Document download
Lowara GS

Lowara GS

Lowara GS series Borehole Pumps, are a multi-stage centrifugal submersible pumps for clean water in 4” wells. They have a high content of AISI 304 stainless steel, and their floating impeller design ensures an excellent resistance to wear.

Document download
Lowara SHO

Lowara SHO

Lowara SHO Series End Suction Pumps are full AISI 316 stainless steel. SH series pumps are used for water and clean liquid circulation in heating, ventilating and air conditioning systems, and for pressure boosting in industrial applications.



Document download
Mono AGM

Mono AGM

The Mono AGM Long haul range incorporates a heavy duty industrial bearing housing to withstand the higher flows and pressures available in the range. Available as a bareshaft for your own drive or a fully assembled motorised unit with electric, diesel or petrol drive to suit your head and capacity needs.

Features & Benefits

  • Flows from 170 to 840 lpm
  • Heads up to 300 m
  • Electronic, diesel or petrol drives
  • Stainless steel rotating pump parts
  • Hard chrome plated rotor
  • Hot dipped galvanised baseplates
  • Low maintenance
Document download
Mono ASP

Mono ASP

The Mono Agricultural Surface Pump (ASP) is a water transfer pump and has been designed to pump potable water from rivers, dams, ponds or tanks to a desired location. The ASP has been design tested and proven in the field over a wide range of water pumping applications. It has been designed for maximum efficiency and reliability. There are two main configurations in the ASP Range; the Motorotor or Bareshaft.

Features & Benefits

  • Sand and silt tolerant
  • Easy priming
  • Long delivery
  • Consistent Flow vs Head
  • Shallow wells
  • Available in Petrol, Diesel and Electric
Document download
Mono Compact C

Mono Compact C

The Compact C Range of progressing cavity pumps has been manufactured by Mono to offer you a pump designed to fit into compact spaces, whilst reliably performing to the maximum duty requirements of your application. Features include good suction lift capability of over 8 metres, positive displacement for process control and variable speed for accurate dosing.

Features & Benefits

  • Available in cast iron or stainless steel, with a choice of rotor and stator materials
  • High pressure, long haul pumping, eliminating the need for a series of pumps when pumping over long distances or with high head requirements
  • Gentle pumping action minimises shear and crush damage
  • Inspection cover available for applications where rag content is a problem
  • Low running speeds - ideal for abrasive applications
  • An inspection cover available for applications where rag content is a problem
  • The pump can be supplied with a square inlet and conveyor to assist viscous slurries into the pumping element



Mono CP

Mono CP

Mono CP pumps are designed for use where low flow or transfer duties in both domestic and industrial applications are required; these units are self-priming and achieve suction lifts up to 8 metres on water. Mono’s CP Range pumps provide an economic answer to many pumping duties. Simple design and construction provide extended pump life with minimal routine servicing.

Features & Benefits

The progressing cavity pump principle ensures steady output pressure and non-pulsing flow with minimal slippage - a very useful feature when pumping heating oil to burner nozzles. The smooth action and resilient rubber stator ensure quiet running - ideal for light industrial and domestic installations. Simple design and easily dismantled, featuring an abrasion and chemical resistant stator for handling viscous liquids and random solids

Applications include:

  • Diesel and fuel oil transfer
  • Septic tank and cesspit emptying
  • Water supply from wells or rivers
  • Transferring light industrial products.
Document download
Mono Dosing

Mono Dosing

The Mono range of dosing pumps offers an efficient, reliable and low maintenance solution for applications where low flow, accurate dosing is required. The Mono dosing pump provides a smooth pumping action with no pulsation and very low shear. The pump is ideal for either intermittent or continuous dosing duties in high pressure, low flow applications, and represents a cost-effective and reliable alternative to the more expensive gear pumps traditionally used for these types of duties. The modular design of the new dosing pump allows the four models in the range to cover performance requirements from 25 litres per hour up to 1,250 litres per hour and 72 bar pressure.



Features & Benefits

  • Self-priming with a gentle non pulsating action to help maintain product integrity
  • New coupling rod design offers higher pressure capabilities, up to 72 bar / 1044 psi
  • Most pump components, except body/coupling rod/suction chamber are stainless steel
  • The suction chamber is manufactured in high density polyethylene
  • The end cover and mechanical seal housing is PVDF
  • For severe chemical environments, internal pump components are supplied in Hastelloy
  • Resilient stator - flexible in operation and high resistance to wear - available in a variety of materials, allowing a wide range of products to be pumped
Document download
Mono Solar SRX

Mono Solar SRX

The Mono™ Sun-Ray SRX solar pump has been designed to transfer surface water with the same efficiency and reliability as other Mono solar pumps. Available, with either a stationary or GPS Tracking array, ranging from 200 Watts to 1600 Watts, the Sun-Ray can deliver very high daily flows with discharge pressures of 120m. The highly efficient, helical rotor pump is inherently self-priming, so the pump can be positioned up to 4m above the water source, allowing the pump to be installed on the top of dam walls or on river-banks above the high water mark. The Sun-Ray is suitable for pumping water from springs, rivers, tanks and dams. It is available with a floating pontoon that has been designed to safely enable the pump to float on a dam or other water source. The PC (Progressive Cavity) helical rotor pump element used in the Sun-Ray pump is proven to provide maximum water output even in water containing silt or iron oxide, and low pump speed means extended rotor and stator life in abrasive bores. The PC pump will deliver water with every rotation regardless of speed, on solar, when pump speed will vary with the amount of sun it is important to get water with every turn of the pump. All Sun-Ray systems are supplied complete with pre-wired solar modules, array frames, pump element, submersible motor and solar motor controller. The entire package is easy to assemble and all electrical connections are fitted with plugs & sockets, so electrical connections do not require an electrician. Float and/or pressure switch input enables complete system automation. The Sun-Ray will only pump as long as water is needed and will stop once tanks and troughs are full.



Features & Benefits

  • Solar power - no fuel costs, maximum output in sunny conditions
  • Self-contained - no need to connect AC power or transport fuel
  • Simple design, proven technology
  • Supplied as a complete package - easy to install
  • Helical rotor pump - highly efficient, self-priming
  • The rate at which water is pumped can be limited to suit the water source



Document download
Regent Column Sump Pump

Regent Column Sump Pump

Regent Column Sump Pumps are long-column versions of the range of end suction centrifugal models. Any model from the Minorflow, Superflow, Majorflow or Dinflow range may be transformed into a column pump, to provide exactly the performance required. Casings and Impellers can be supplied in combinations of cast iron, bronze, zinc-free bronze and stainless steel. TEFC motors are standard; others such as flameproof and immersion-resistant may be fitted. Column length made to order.



Document download
Regent DIN Vortex

Regent DIN Vortex

The Vortex range is the DINflow close coupled pump, fitted with a recessed impeller. As the vortex recessed impeller is located outside the flow path, it moves the liquid in a vortex action, during which less than 10% of the liquid enters the impeller vanes. This action, and the pump’s internal clearances, allows the passage of solids and fibrous matter.



Document download
Regent DINbloc

Regent DINbloc

The Regent Dinbloc series is the close coupled motor pump version of the Dinflow DIN standard 24255, single stage, end suction centrifugal pump. The Dinbloc uses standard Dinflow pump components, and specially designed support frame and stub shaft to couple the pump directly to a foot-and-flange, metric frame electric motor. Casings and Impellers can be configured in combinations of cast iron, bronze, zinc-free bronze and stainless steel. TEFC motors are standard, however others such as flameproof and immersion-resistant may be fitted.



Document download
Regent DINflow

Regent DINflow

The Regent Dinflow is a bare shaft, DIN standard 24255, single stage, end suction centrifugal pump, with vertical discharge. The Dinflow volute casing is fitted with replaceable wear rings and is back pull out. The pump can be configured in a variety of sealing options, from packed gland through a range of mechanical seals, and the materials of construction from Caste Iron, Bronze, Zinc Free Bronze and Stainless Steel.



Document download
Regent ISO Flow

Regent ISO Flow

A bare shaft single stage end suction centrifugal pump, ISO Standard thus dimensionally interchangeable with all pumps conforming to this standard. It also features Back Pull-Out of entire rotating element and easy impeller removal due to taper mounting.



Document download
Regent ISObloc

Regent ISObloc

A close coupled version of the Regent ISO flow range. ISO bloc pumps are to the ISO standard, and use standard “off–the–shelf “ TEFC foot and flanged electric motors. The ISOBloc range come in a wide variety of construction materials, pump discharge positions and operating range.



Document download
Regent Linebloc

Regent Linebloc

An in-line close coupled single stage centrifugal motor pump. These compact pumps are ideal when space is at a premium and you require a high flow at an economical operating cost. Linebloc pumps feature standard off-the-shelf TEFC foot and flange electric motor.

Document download
Regent Majorflow

Regent Majorflow

Regent Majorflow pumps are a close coupled, end suction, centrifugal motor pump. They have a radial discharge, allowing the casing to be mounted in eight alternative discharge positions. They are standard with a mechanical seal, pump casing & back plate construction close grained cast iron. Options available are bronze, zinc free bronze or stainless steel.



Document download
Regent Minorflow

Regent Minorflow

The Regent Minorflow models are either bare shaft or close-coupled, single stage centrifugal pumps. These pumps are either an end-suction design with tangential discharge, or a vertical in-line model. Casings and Impellers can be supplied in combinations of cast iron, bronze, zinc-free bronze and stainless steel.



Document download
Regent SP

Regent SP

The Regent Auto prime is a single stage, self-priming centrifugal pump. Auto prime pumps may be supplied close coupled to electric motor, petrol/diesel engines or as bareshaft units. Casings and Impellers can be supplied in combinations of cast iron, zinc-free bronze and stainless steel. The non-return suction flap valve retains liquid in the pump casing, ensuring quick and easy priming without the need for a foot valve. Mechanical seals are fitted, and are available with a variety of elastomers and face materials to suit a wide range of fluids and temperatures. Robust cast metal pump components for long life, with removable ports allowing varying discharge positions. Lloyd's Register Marine Certification available.



Document download
Southern Cross CBI

Southern Cross CBI



Designed for general transfer of all abrasive and solids free water and liquids in domestic or light industrial applications.

FEATURES

  • Compact design
  • 2 sizes in 2 to 6 stages
  • All parts in contact with liquid are 304 stainless steel
  • 10mm (3/8”) priming and drain plugs
  • Screwed pump suction and discharge connections
  • CBI-2 25mm (1”BSPF)
  • CBI-4 32mm (11/4” BSPF) x 25mm (1” BSPF)
  • High quality mechanical shaft seal
  • TEFC motor, 2800rpm, 240V single phase or 415V three phase, IP54 enclosure
Document download
Southern Cross CBI WPS

Southern Cross CBI WPS

APPLICATIONS

Designed for automatic water pressure boosting in domestic applications and light industry.

FEATURES

  • PRESSCONTROL systems for excellent pressure and flow control without a pressure tank
  • Pressure Tank Systems with 8 and 18 litre tanks
  • All 304 stainless steel pump construction
  • Brass suction line check valve supplied
  • Pressure to 550kPa (80psi)
  • Output to 130 litres per minute for up to 11 tap supply
  • Simple installation — 25mm male connections
  • Capacity Maximum - 130 l/min
  • Max. Pressure - 550 kPa (80psi)
  • Liquid Temp - +4°C to +40°C
Document download
Southern Cross ISO PRO

Southern Cross ISO PRO

APPLICATIONS

Designed for heavy duty industrial use, including belt drive applications, for general water transfer in processing plants, mines, construction sites and irrigation.

FEATURES

  • Heavy duty oil lubricated taper roller bearings
  • Australian designed and manufactured
  • Heads to 160 metres
  • Up to 250 litres per second discharge
  • Manufactured to ISO 5199 Standard
  • Heavy duty design type 316 shaft
  • High strength cast iron bearing housing
  • Mechanical seals fitted as standard with single on-shaft mechanical seal
  • 1600kPa pressure rating
  • Taper mounted impeller for positive drive and easy removal
  • Replaceable stainless steel or zinc free bronze wear rings
  • Reusable ‘O’ ring body seals in Viton as standard and Teflon or EPDM as options
  • AS2129 Flanges
  • Standard tappings —Volute drain plug, suction flange tapping for suction gauge and discharge flange tapping for pressure gauge

OPTIONAL WET END MATERIAL OPTIONS

  • Cast Iron
  • Stainless Steel
  • Zinc Free Bronze
  • SG Iron



Document download
Southern Cross ISO Sovereign

Southern Cross ISO Sovereign

APPLICATIONS

Designed for efficient and reliable general purpose water transfer in industry, building services and irrigation.

FEATURES

  • Superior hydraulic design and manufacturing methods produce significantly higher efficiencies for lower running costs and reduced maintenance.
  • Australian designed and manufactured
  • 32 to 200mm discharge
  • Up to 250 litres per second discharge
  • Heads to 160 metres.
  • Taper mounted and keyed impeller for easy removal from shaft
  • Heavy duty shaft with large capacity impeller end bearing for safe operation at high speed
  • Hydraulically and dynamically balanced impellers
  • Type 431 stainless steel shaft
  • Rugged cast iron volute with integral suction and discharge flanges and mounting feet
  • Pressure rated to 1600kPa (160 metres head)
  • Cast iron impeller and backplate
  • Stainless steel impeller nut
  • Maximum pumped liquid temperature for “ISO Sovereign” Pumps is 80°C using standard seals
  • Lip type shaft seals to protect bearings
  • Single mechanical seal
Document download
Southern Cross ISO Starline Motorpump

Southern Cross ISO Starline Motorpump

APPLICATIONS

Designed for efficient and reliable general-purpose water transfer in industry, building services and irrigation.

FEATURES

  • Space saving design
  • Superior hydraulic design and manufacturing methods produce significantly higher efficiencies for lower running costs and reduced maintenance
  • Australian designed and manufactured
  • Up to 250 litres per second discharge
  • ISO 9001 quality assured
  • 32 to 200mm discharge
  • Heads to 160 metres
  • se of standard off-the-shelf foot and flanged electric motors
  • Taper mounted and keyed impeller for easy removal from shaft
  • Heavy duty stainless steel shaft extensions for safe operation at high speed
  • Type 316 stainless steel shaft extension
  • S.G. cast iron motor shaft clamp
  • TEFC IP55 motor; rugged cast iron volute with integral suction and discharge flanges
  • Pressure rate 1600kPa (160 metre head)
  • Cast iron impeller and backplate; stainless steel impeller nut
  • Rigid cast iron bell housing connects motor and pump housing
  • Single mechanical seal.
  • Maximum pumped liquid temperature for ‘Star-Line’ Motorpumps is 100°C using standard seals.
  • Liquids up to 140°C can be handled using special seals



Document download
Southern Cross LA Line Shaft Turbines

Southern Cross LA Line Shaft Turbines

Southern Cross "LA" Line Shaft Turbine Pumps provide the quality, durability and reliability for vital community water supplies, large rural irrigation schemes, turf watering installations and stock watering plants which source water from underground supplies.

FEATURES

  • High pumping efficiency for reduced running costs
  • Highest quality phosphor bronze and stainless steel construction for corrosion resistance
  • Suitable for installation in boreholes from as small as 140mm inside diameter, these pumps deliver up to 50 litres per second. Heads up to 200 metres
  • Shaft driven from surface mounted vertical shaft electric motor or PTO driven right angle gear drive head
  • Use standard flanged solid shaft electric motor mounted on heavy duty thrust bearing assembly with non-reverse ratchet and flexible shaft coupling
  • Impeller trimming allows exact matching of pump duty points to maximise efficiency and minimise power costs
  • Australian made for guaranteed spare parts availability
Document download
Southern Cross NA Submersibles

Southern Cross NA Submersibles

Southern Cross "NA" Electric Submersible Borehole Pumps are Australian made and designed for high capacity borehole pumping applications. The feature quality phosphor bronze and stainless steel construction for corrosion resistance. Suitable for installation in boreholes from 150mm ID upwards. Motor sizes from 2.2 to 90 kW and deliver up to 55 litres per second with heads up to 300 metres. Rigid connection between motor and pump provides a single, perfectly aligned unit and impeller trimming allows exact matching of pump duty points to maximise efficiency and minimise power costs. Suitable also for industrial applications including dewatering of mines and excavations, sump drainage and in-line pressure boosting. Can operate anywhere from vertical to horizontal where there is sufficient water to fully immerse the unit.



Document download
Southern Cross SC 4 inch

Southern Cross SC 4 inch

Full 304 Stainless Steel submersible pump for boreholes 100mm or larger.

FEATURES

  • Exceptional quality and hydraulic design
  • 304 stainless steel pump bowls, impellers and diffusers for optimum wear and corrosion resistance
  • Heavy duty 304 stainless steel pump shaft and motor coupling
  • Heavy duty  304 stainless steel pump outlets screwed 1 ¼, 1 1/2 and 2 inch
  • Capacities to 300 litres/minute
  • Heads to 300m
Document download
Southern Cross SC 6, 8 and 10 inch

Southern Cross SC 6, 8 and 10 inch

Full 304 Stainless Steel submersible pumps, suitable for borehole pumping, mine and sump dewatering and in-line pressure boosting.

FEATURES

  • Exceptional quality and hydraulic design
  • Precision stamped and cast stainless steel construction
  • Sturdy and lightweight
  • Capacities to 160m3/hour
  • Pumping heads to 500m
  • Can operate at any angle from vertical to horizontal
  • Replaceable NBR shaft bearings and impeller neck rings

150MM 6”

  • Maximum unit diameter 152mm
  • Capacities to 78m3/hour and heads to 420m
  • Available as 2 to 40 stage pumps with motors from 1.1 to 37kW
  • Pump outlets screwed 2 ½, 3 or 4 inch BSP

200MM 8” AND 250MM 10”

  • Maximum unit diameter 240mm
  • Capacities to 160m3/hour and heads to 500m
  • Available as single to 20 stage pumps with motors from 5.5 to 185kW
  • Pump outlets screwed 5 or 6inch BSP
Document download
Southern Cross SD 4 inch

Southern Cross SD 4 inch

Fully submersible 4" pumps for all general water supply from boreholes 100mm or larger

FEATURES

  • Exceptional quality and hydraulic design
  • 304 stainless steel pump bowls
  • High grade noryl floating stack impellers & lexal diffusers for wear and corrosion resistance
  • 304 stainless steel pump shaft and motor coupling
  • Cast 304 stainless steel pump outlets screwed 1 ¼ and 2 inch
  • Capacities to 400 litres/minute
  • Heads to 300m
Document download
Southern Cross SU

Southern Cross SU

The Southern Cross SU models are high head, heavy duty self-priming pumps which feature a high efficiency 6 vane open impeller and an easy to maintain design which makes them ideal for the transfer of dirty water. Available in a wide range of materials, these pumps provide excellent pumping performance in a wide variety of applications across a large range of duties.

FEATURES:

  • Back pull out design
  • Maintenance hatch allows easy access to pump casing and impeller to remove blockages.
  • 6 vane high efficiency open impeller allows passage of solids up to 32mm.
  • External shim less adjustment of the impeller.
  • 316 stainless steel mechanical shaft seal with titanium/tungsten carbide faces.
  • Wide range of pump construction materials available.

APPLICATIONS

  • Waste Water
  • Dewatering
  • Processing
  • Raw Water
  • Irrigation
  • Mining
  • Agriculture

TECHNICAL DATA

  • Models 3 - 6 inch
  • Capacity  2.8-85 m3/hr
  • Max Head 62 metres
  • Max. Self-Priming 7.6 m
  • Max. Solid Size 21-32mm
Document download
Southern Cross SX1000-V

Southern Cross SX1000-V

The SX1000-V Air Operated High Volume Vacuum Pump is a high velocity, heavy duty solids pump, capable of capturing high density slurries via a strong 25"Hg vacuum combined with high velocity airflows. The SX1000-V can handle solids up to 80% of the hose diameter connected and will transfer up to 50 m3/hr, depending on the materials and distances involved. The SX1000-V High Volume Solids Pump has no moving parts in contact with the material being pumped and can pass rags, bolts and many other items that would render a standard impeller pump, inoperable.

FEATURES:

  • 100% compressed air operation
  • Intrinsically safe (ATEX Compliant)
  • Fully portable
  • No moving parts in contact with product
  • Manual or fully automatic operation
  • High vacuum and very high airflow
  • Delivers over 1000 metres
  • High solids content (80%+) transfer

APPLICATIONS:

  • Spillage recovery and transfer
  • Large dam desilting
  • Sump cleaning and desilting
  • Tank bottoms and sludge extraction
  • Palm oil pond desludging
  • OBM transfer and pit cleaning
  • Bentonite, sand, and cement powders transfer

TECHNICAL DATA

  • Height 215 cm
  • Width 180 cm
  • Length 200 cm
  • Weight 880 kg
  • Air consumption 600 - 900cfm at 85psi+
  • 25"Hg+ (85kPa) vacuum
  • Suction inlet 100 mm (4") or 150 mm (6")
  • Discharge outlet 100 mm (4") or 150 mm (6")
  • Handles solids to 75 mm (3")
Document download
Southern Cross SX40

Southern Cross SX40

The SX40 is an air driven, composite material, compact, lightweight, intrinsically safe, and multipurpose solids pump.

APPLICATIONS

  • Sump cleaning
  • Transfer of mining slurries and slimes
  • Drain desilting
  • Effluent transfer
  • Hazardous waste transfer
  • Pneumatic excavation
  • Agricultural product and waste transfer

FEATURES

  • Composite fibreglass construction
  • 100% compressed air operation
  • Intrinsically safe
  • Fully automatic
  • Versatile
  • No internal moving components
  • High vacuum and high airflow
  • Recovers material, (suction) from up to 40 metres
  • Delivers up to 300 metres
  • Pumps up to 7 m3/hr

TECHNICAL DATA

  • Height 87 cm
  • Width 67 cm
  • Length 135 cmWeight <36 kg
  • Air consumption 60cfm at 100psi+
  • Up to 25”Hg+ (85kPa) vacuumSuction 75 mm
  • Discharge 75 mm
Document download
Southern Cross SX60

Southern Cross SX60

The SX60 Portable Air Operated Slurry Pump was designed to offer a one man vacuum recovery, pressure discharge unit that can recover and transfer almost any flowable material. The SX60 Portable Slurry Pump is 100% air powered and operated and creates over 24"hg+ of vacuum using 150 cfm at 85psi+.

THE SX60 PORTABLE SLURRY PUMP FEATURES:

  • Fully automatic operation
  • Recovers material (suction) from up to 50 metres
  • Delivers up to 500 metres (1500 feet)
  • Pumps up to 10m3/hour
  • Intrinsically safe
  • Highly mobile
  • No internal components

TECHNICAL INFORMATION:

  • Height 80cm
  • Width 70cm
  • Length 150cm
  • Weight 198 kgs
  • Air consumption 150cfm at 85psi+
  • Suction 75mm
  • Discharge 75mm
  • Handles solids to 50mm
Document download
Southern Cross SXSS

Southern Cross SXSS

The Southern Cross SXS Slurry Pumps are electro submersible centrifugal pumps designed for pumping abrasive and high density slurries in mining, heavy industry, civil construction and municipal applications.

FEATURES

  • 27% chrome white iron impeller, integral agitator, volute and replaceable back plate.
  • 420 stainless steel strainer, shaft and shaft sleeves.
  • Low speed electro submersible motor provides reliable continuous operation.
  • Heavy duty cast iron motor construction.
  • Motor incorporates moisture sensors, float switch and bearing and stator temperature sensors.
  • Oil bath lubricated double mechanical seal

TECHNICAL DATA

  • Pump Outlet: 80mm to 400mm
  • Capacity: 6.5 – 670 litres per second
  • Head: up to 64m
  • Maximum solid size: 10 - 60 mm
  • Speed: 980 - 1480 RPM
  • Motor size: 7.5 – 315kW



Document download
Stalker APC

Stalker APC

The Stalker Pumps APC Range are designed, engineered & manufactured in Perth, Western Australia. APC Units are customised to suit specific project needs, with in-house casting of all metals means competitive pricing, short lead times and quality control.

Applications & Options:

  • Stalker offer an experienced drafting, fabrication & installation team for complete customised pumping solutions, configured to suit a wide variety of applications including clean water, sea water, raw water, process water, waste water, sewage and hazardous fluids, as well as corrosive liquids.
  • Base frame mounted and/or heavy duty trailer mounted assemblies available.
  • Engine: Cummins, Caterpillar, Detroit – customer specified units available
  • Fuel Tank: Bunded fuel tank.
  • Control Panel: Engine manufacturer standard panel, or additionally client specified and/ or telemetry can be fitted.
  • Fuel Filling standard or optional: Hydrau-Flo fuelling system.
  • Wiring: Mine spec or MDG15 available.
  • Pipework: Suction booms, discharge pipework – to customers specifications.
  • Various material options

Operating Limits: (Model Dependant, Refer to Individual Model Curves)

Max Flow 500 L/Sec

Max Pressure 200 M/Hd

Document download
Stalker APR

Stalker APR

Stalker Pumps APR Pumps are self-priming eliminating the need to prime the pump before operation as with centrifugal pumps. The proven mechanical design provides excellent reliability and easy service maintenance. The Primary design application is for dewatering.

Applications & Options:

  • Major components manufactured from heavy section castings in materials to suit application.
  • Highly durable rotating element designed using AS2837-316 stainless steel for shafts, sealed for life, re-grease able or oil fed long life bearings, DIN 24960 rubber bellows type Mechanical seals with a variety of seat face options, both open and closed impeller designs available.
  • Fasteners – 8.8 grade high tensile zinc coated and stainless steel 316 grade.
  • Direct coupled units fitted with heavy duty pin bush or flexible tyre coupling fully enclosed in an anti-scatter guard.
  • Pulley drive option features a heavy duty double row bearing fitted for overhung loading.
  • Mounting options – trailer mounted, heavy duty base frames in materials to AS3679 – open direct mount, open skid type or skid type with fuel tank fitted.
  • Engine configurations in both petrol and diesel models with performance and capacity to suit to application from reputable OEM suppliers: – Caterpillar, Cummins, Perkins, Honda, Yanmar and Deutz.
  • Various Material Options Available.

Operating Limits: (Model Dependant, Refer to Individual Model Curves)

Max Flow 350 L/Sec

Max Pressure 90M/Hd

Document download
Stalker Compact

Stalker Compact

Stalker Pumps Compact Series are designed using heavy material sections for strength and durability. This range is especially suited for agricultural, domestic and industrial applications.

Features:

  • Casing/Impeller/Intermediate Cover/ Motor End Coupling – Cast Iron to AS1830.
  • Direct shaft mounted Impeller.
  • Fasteners – Zn Coated 4.6 – 8.8 grade.
  • All Gaskets and Seals utilised on assembly are manufactured from proven long life materials.
  • The Ball Bearings fitted to the rotating element are long life heavy duty which can be supplied in sealed for life or grease lubricated assemblies.
  • Mechanical seals are to DIN 24960 and are rubber bellows type with hard faced seats.
  • Electric Motors are fitted to suit Tropical conditions.

Operating Limits: (Model Dependant, Refer to Individual Model Curves)

Max Flow 14 L/Sec

Max Pressure 55M/Hd

Document download
Stalker ISO

Stalker ISO

The Stalker ISO are manufactured in Western Australia to the highest quality, employing the best engineering practices available. Their ISO range are designed and manufactured to internationally recognised ISO 2858 standard.

Applications & Options:

  • Available as standard direct coupled units suitable for direct coupling or pulley driven by electric motors, petrol or diesel engines and hydraulic motors.
  • Manufactured for close coupling to electric motors.
  • Suitable for pumping clean water, sea water, raw water, process water, waste water, sewage and hazardous as well as corrosive liquids.
  • Supplied as stand-alone units or coupled to the drive of your choice.
  • Mounted base frame and/or Heavy duty Trailer mounted assemblies available.
  • Can be configured to suit a wide variety of application conditions which are not catered for by other manufacturers.
  • Consumable material options available for high tensile fasteners, high grade material O-rings, oil seals and mechanical seals.
  • Various material options.

Operating Limits: (Model Dependant, Refer to Individual Model Curves)

Heads: up to 160 metres

Capacities: up to 250 litres per second

Document download
Stalker SHD

Stalker SHD

The SHD Series is the Stalker Heavy Duty Pump Range. Their primary design application is mine dewatering. The Heavy duty build options available on all 400 and 500mm impeller series ISO class pumps.

Applications & Options:

  • Suction and Discharge flanges – heavy duty with hole patterns to ANSI Class 150 and 300.
  • Major cast components manufactured from heavy section abrasion resistant white iron complying with AS2027. dditional components cast from heavy section Spheroidal Graphite (SG) iron complying with AS1831 400 Mpa tensile. Impeller material – H3B (AS2074) heat treated stainless steel.
  • Shaft material – alloy steel to AS1444-4140 max. 1100 Mpa UTS with O-ring sealed wear sleeve fitted (material AS2837 – 316 stainless steel).
  • Mechanical Seal Assembly Cartridge type -heavy duty to suit application.
  • Gaskets/Seals/O-rings – insertion rubber/nitrile (viton fluroelastomer option).
  • Fasteners – 8.8 grade high tensile Zinc coated and 316 stainless steel.
  • Rotating Element Bearings – front angular contact 7316 series & heavy duty ball 6316 (C3) series bearing.
  • Rear – heavy duty 6316 (C3) series ball bearing.
  • Grease feed with purge flingers.
  • Optional builds include compressor assisted pump pre-prime units, base and trailer mounted units.
  • Various Material Options Available

Operating Limits:  (Model Dependant, Refer to Individual Model Curves)

Max Flow: 500 L/sec

Max Pressure: 250 M/Hd

Document download
Wilden Air Distribution Systems

Wilden Air Distribution Systems

Wilden pumps can be supplied with a number of uniquely different air distribution valves. More predominantly the newer pumps are supplied with the Pro-Flo-X series; however alternative valves are available and often critical in certain areas.

Document download
Wilden Bolted Metal Advanced Series Pumps

Wilden Bolted Metal Advanced Series Pumps

The Wilden “Advanced” series of metal pumps features a bolted body design. The bolted configuration on the Wilden AODD pumps deliver better leak resistance at higher pressures than traditional clamp-banded designs. The Advanced series metal pumps are offered in die-cast aluminium, stainless steel and Ductile iron. A variety of options such as ANSI and DIN flanges, NPT/BSPT threads, and specialised air distribution systems are available.

Document download
Wilden Bolted Plastic Advanced Series Pumps

Wilden Bolted Plastic Advanced Series Pumps

The Wilden “Advanced” series of Air-Operated Double-Diaphragm (AODD) bolted plastic pumps were specifically engineered for maximum performance and efficiency in a variety of applications. Price, chemical compatibility and mobility are important considerations in choosing a plastic pump over a metal pump. Some pumping applications require a pump that is mobile and available in multiple locations. The Wilden Advanced Series AODD plastic pump is lighter compared to metal pumps and is easier to transport. When chemical compatibility is critical, plastic AODD pumps provide an outstanding option over metal pumps that are incompatible with certain chemicals. The bolted configuration ensures total product containment while the optimized liquid path reduces internal friction to maximize output and efficiency. The plastic pumps are offered in polypropylene, PVDF and Teflon, with a variety of outlet options, such as ANSI and DIN flanges, and specialised air distribution systems.

Document download
Wilden Chemical Compatibility

Wilden Chemical Compatibility

Selection of the correct body materials and internal elastomers is essential to ensure the correct operation of a Wilden pump. Please refer to the Chemical Resistance Guide for full guide to the correct selection.

Document download
Wilden Clamped Metal Original Series Pumps

Wilden Clamped Metal Original Series Pumps

The Wilden “Original” series of metal Air-Operated Double-Diaphragm (AODD) pumps are perfect for demanding applications that require a robust design and long-term dependability. The clamp bands come off quickly and easily for replacement of diaphragms and cleaning. The clamped series are generally cheaper than the bolted series. The Original series metal pumps are available in aluminium, stainless steel and Ductile Iron. A variety of options such as ANSI and DIN flanges, NPT/BSPT threads, and specialised air distribution systems are available.

Document download
Wilden Clamped Plastic Original Series Pumps

Wilden Clamped Plastic Original Series Pumps

The Wilden “Original” series of Air-Operated Double-Diaphragm (AODD), in the clamped configuration ensures reliability without sacrificing ease of maintenance. The clamp bands are easily removed for replacement of diaphragms and easy cleaning. Price, chemical compatibility and mobility are important considerations in choosing a plastic pump over a metal pump. Some pumping applications require a pump that is mobile and available in multiple locations. The Wilden Advanced Series AODD plastic pump is lighter compared to metal pumps and is easier to transport. When chemical compatibility is critical, plastic AODD pumps provide an outstanding option over metal pumps that are incompatible with certain chemicals. The bolted configuration ensures total product containment while the optimized liquid path reduces internal friction to maximize output and efficiency. The plastic pumps are offered in polypropylene, PVDF and Teflon, with a variety of outlet options, such as ANSI and DIN flanges, and specialised air distribution systems.

Document download
Wilden Elastomers

Wilden Elastomers

Apart from the wide selection of body materials avaiable, from Plastic to Steel, the internal elastomers are available in a range of materials, each with its own unique chemical, temperature and wear resistance properties;

  • Buna-N
  • EPDM
  • Neoprene
  • Polyurethane
  • PTFE
  • Saniflex
  • Viton
  • Wil-Flex

Correct selection of the body materials and internal elastomers is essential to ensure the correct operation of any Wilden AODD pump. Please refer to the Chemical Resistance Guide for full selection.

Document download
Yamada AODD Pumps

Yamada AODD Pumps

All Yamada Air Powered Double Diaphragm Pumps feature bolted body construction, which eliminates leaks and simplifies post-maintenance reassembly. Bolted construction is generally superior to clamp band retainers, which frequently require frustrating, unnecessary leakage rebuilds from misalignment during reassembly.

Features:

  • Outside-Accessible Air Valve, which simplifies inspection or maintenance without removing the pump from service.
  • Unified Air Valve Concept, which means common size air valve assemblies over all models.
  • Unique to the Yamada design is an individual modular pilot valve that actuates the air valve. It is depressed slightly by the inner center disk creating a pressure drop at one end of the air valve, allowing shifting to occur. It is maintenance free with no cumbersome snap rings or lubricated dynamic o-rings to replace or repair.
  • Optimal Stroke Length that maximizes diaphragm life and performance while minimizing downtime and maintenance costs.
Document download
Yamada Chemical Resistance Guide

Yamada Chemical Resistance Guide

One of the more difficult tasks in selecting a pump for long, trouble free service is the proper choice of both wetted and non-wetted pump components. Pump components wear, and the objective is to get the longest life from the wearing parts. Knowing how to han-dle abrasive and corrosive fluids will lead to proper wetted materials selection. When selecting a pump for corrosive service most use chemical compatibility charts and graphs for selecting and recommending pump materials of construction. These charts; at best, are meant as ever so general guidelines. Practical experience, and past history will dictate the use of certain materials with various fluids.

Document download
Yamada Diaphragm Failure Analysis

Yamada Diaphragm Failure Analysis

Pump components wear, and the objective is to get the longest life from the wearing parts. The downloadable guide will assist you in identifying the cause of diaphragm failure and possible solutions for modifying the elastomer selection or operational conditions to improve elastomer life.

Document download
Yamada Drum Pump

Yamada Drum Pump

Yamada Air-Powered Double Diaphragm Pumps have distinct design advantages that make them very versatile and cost effective drum pumps.Models are available in Polypropylene, PVDF (Kynar®), Aluminum, and Stainless Steel which includes a 2" bung adapter and 33" suction tube.

  • Available in 3/8", 1/2", and 3/4" port sizes (3/8" metal only & 1/2" plastic only)
  • Flow rates up to 28 GPM
  • Yamada plastic drum pumps incorporate side liquid ports and utilize a 90° elbow on the top of the drum.
Document download
Yamada Engineering Guide

Yamada Engineering Guide

The Yamada Engineering Handbook combines AODD operation and selection data sheets into an understandable and convenient information source, to enable the end user to select the correct pump for their application.

Document download
Yamada Powder Pump

Yamada Powder Pump

Yamada Powder Pumps were specifically designed to move bulk solids more effectively throughout your process. They are a cost effective replacement for Augers and Conveyors and eliminate unsafe and labour intensive means of moving bulk powders. These heavy duty pumps consistently transfer fine-grained (100um or finer), low bulk density (5 to 50 lbs. / cubic foot), dry powders in a dust-free operation.

Document download
© 2018 Industrial Pumping Pty Ltd
